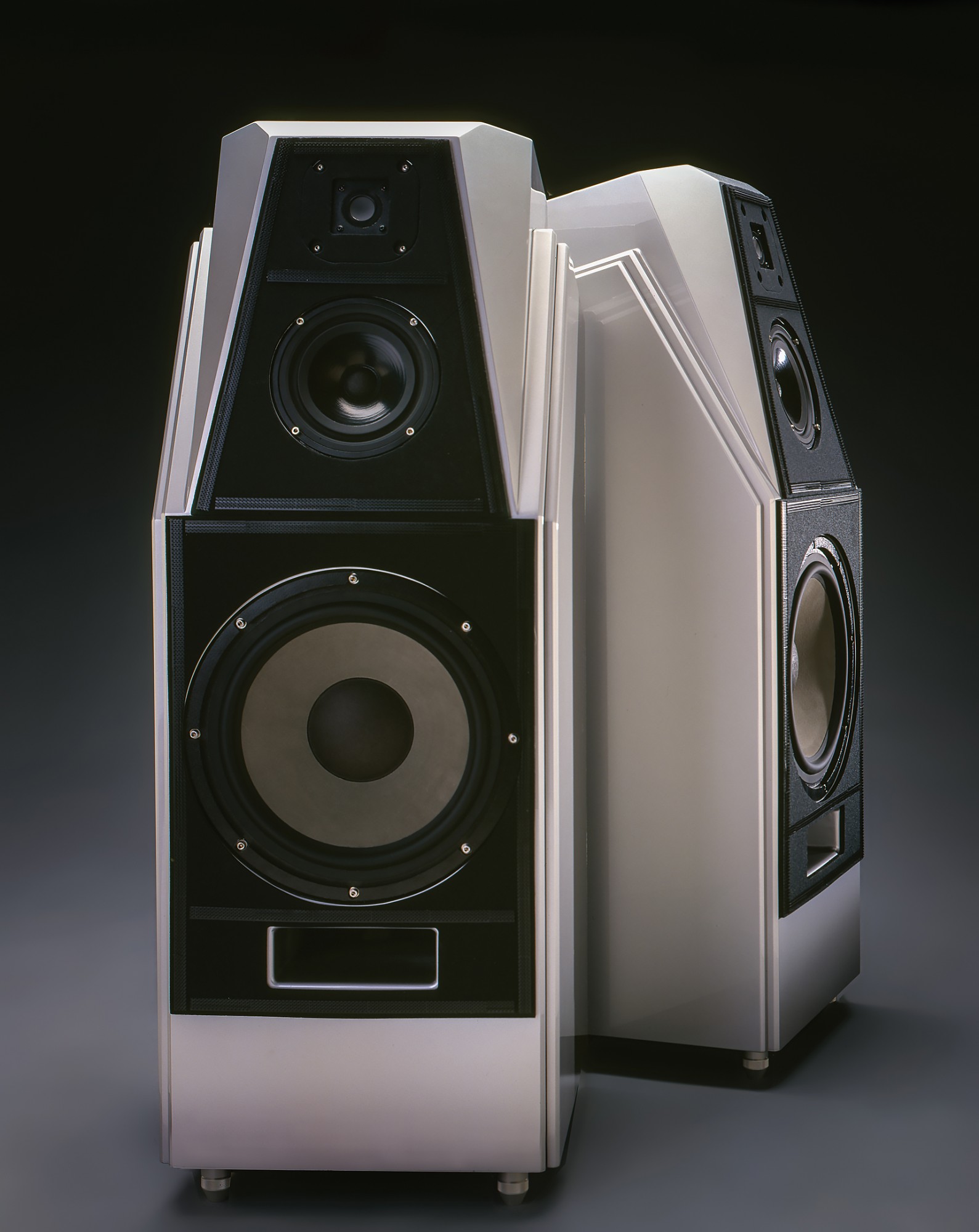

The WITT is designed around a massive enclosure utilizing proprietary polymer materials technology. The enclosure material exhibits excellent internal damping and a correct mechanical impedance match to the frames of the drivers. Additional mechanical tuning is provided by rigid cross-bracing.The acoustical tuning of the low frequency system is modeled after the quasi-forth order Butterworth response, which provides linearity in the upper-bass (without the usual mid-bass hump) with superior transient performance. The crossover network uses multiple slopes to achieve acoustical phase linearity. Minimum energy/time-storage behavior in the crossover is achieved by using only the finest audio-grade propylene capacitors, OFC air-core inductors, and time coherent wire. The components are matched to better than 0.1 % tolerance. The drivers were selected because of their frequency response linearity, impulse stability, and most important, their intrinsic musical quality.

Awards

Component of the Year
1995

WITT Series 1 Technical Specifications

Released: 1995
Retired: 1997

Drivers

Tweeter
1 - 1 inch Inverted Titanium Oxide Dome
Midrange
1 - 6 inch
Woofer
1 - 12 inch

Measurements

Impedance
8 ohms
Frequency Response
28 Hz - 22 kHz
Sensitivity
90 dB @ 1 Meter @ 2.83 V

Dimensions

Height
42 5/8 inch
Width
16 1/8 inch
Depth
18 inch
Weight
235 lbs.
Ported
Front

Enclosures & Materials

Cabinet Material
MDF With X-Material Side Panels
