Wilson Audio - Alexx V

Convergence of Nature, Science and Art

The original Alexx loudspeaker, launched in 2016, quickly gained critical acclaim throughout the industry. Alexx benefited from several elements developed during the five years Wilson Audio’s founder David A. Wilson, and his unwavering R&D team, brought to life his magnum opus: the WAMM Master Chronosonic. Now, five years after the monumental accomplishment of the WAMM, Alexx V builds upon the original Alexx’s success by offering a completely re-engineered performance envelope without greatly increasing the footprint. Comparing the overall size of Alexx V to the original, Alexx V is only 1” deeper and 1” taller while maintaining the same width.

Learn More

Alexx V Elements

Our engineering team went through each of the critical sub-systems found in the Alexx® and upgraded, or re-engineered, many of its components. Here are some highlights:

All X-Material enclosures with V-Material nested in strategic locations (top of the woofer, in gantry cross-brace, and in the new Wilson Audio Acoustic Diode™ Spike). Vibration control and upper module isolation akin to what is found in the Chronosonic XVX provides amazing settling between the notes.
There have been several crossover changes. With fewer components now in the signal path we fine-tuned and modified the system for better Impedance and Sensitivity measurements— From a minimum impedance measurement of 1.5 ohms (Alexx) to 2.0 ohms (Alexx V) and +1dB more sensitive than Alexx Series 1.

More highlights are listed below.

Open Gantry

QuadraMag 7" Midrange

New Capacitors

CSC Tweeter

Crossbrace

Woofer

Acoustic Diodes

Binding Posts

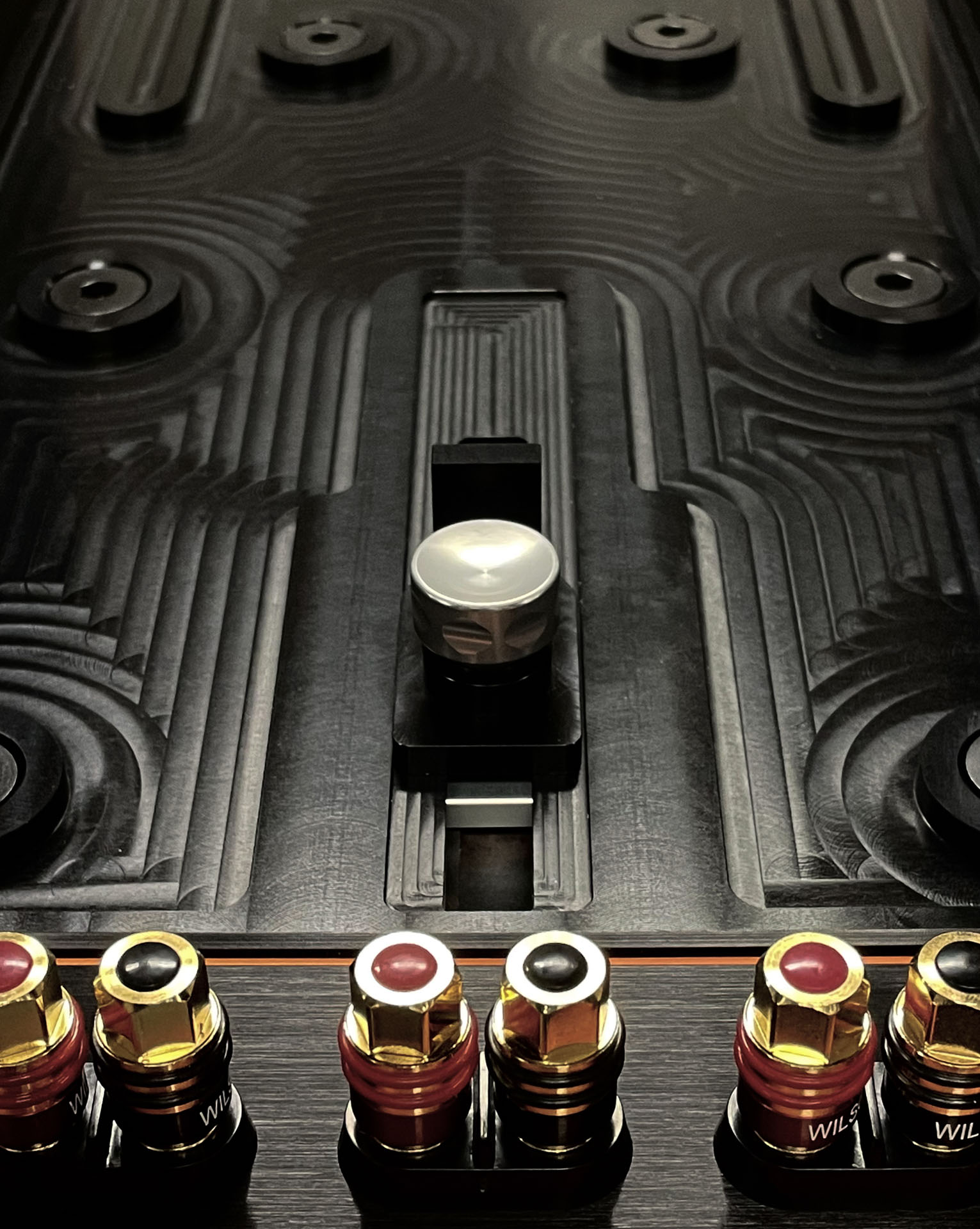

Process of Handcrafting Alexx V Gantry

Alexx V is an extraordinarily adaptable design. Carrying over elements from its larger siblings, such as the XLF reversible woofer port and independently adjustable modules, allow this system to be elegantly tailored to your listening room. These tools built into the DNA of Alexx V allow for greater ease of installation into a wider variety of listening spaces, thus permitting the listener to truly experience the depth and ability of this system.

Learn More

Gantry

The open architecture gantry first launched with WAMM Master Chronosonic, followed by Chronosonic XVX, has now found a home with Alexx V. Not only does this benefit the overall appearance of the loudspeaker, but critically, it also enhances the overall rigidity of the entire upper module section and minimizes pressure trapped behind the enclosures, resulting in greater fidelity. Easier access to the upper modules makes for quicker adjustments. Similar to our innovative lighting solution (Sono 1™ from Coolfall®) featured in Chronosonic XVX, Alexx V has an illuminated cross brace at the rear of the gantry, which aids in speaker module setup and time-alignment fine-tuning.

Learn More

Wilson Audio Acoustic Diode

Building upon the research and development of Pedestal, the Special Applications Engineering Team is excited to announce the Wilson Audio Acoustic Diode™ (AD Spike for short). At the heart of the Acoustic Diode is our proprietary “V-Material.” This superior constrained layer damping composite is unsurpassed in vibration absorption and resonance control.

Energy from the enclosure migrates into the V-Material where it is faced with the effective damping properties of this efficient material. The mass of the loudspeaker concentrated onto the very small ends of the spike tips results in significant levels of PSI that prevent detrimental vibrations from traveling upward into the footer. Those vibrations that do travel up the spike are absorbed by the mass of the Acoustic Diode and have to travel through the V-Material to have a chance to influence the enclosure.

Keeping the spike and threaded post separate prevent a direct path for vibrations to travel, or interplay, and are therefore dissipated and absorbed in either the V-Material or the footer housing. This distinctive design, combined with advanced vibration-mitigating materials, provides the best of both worlds; a solid base from which the drivers can launch as well as preventing the transmission of energy from the floor to the loudspeakers.

Wilson Audio Acoustic Diode Specs
Materials
Proprietary "V-Material” & Austenitic Stainless Steel
Dimensions
Height = 2 1/32" – 2 17/32” (5.16 cm - 6.43 cm)
Diameter = 2 5/16" (5.87 cm)
Weight Per Unit
12 oz (0.34 kg)
8 Units / Box
Available Thread Sizes
Standard
1/2"-13
Additional Sizes Available Upon Request:
3/8"-16
5/16"-18
1/4"-20
M6
M8
M10
M12
M14
Available Color Options
Natural Stainless Steel
Carbon Black

Convergent Synergy Carbon

Alexx V features an entirely new Convergent Synergy Carbon (CSC) tweeter, which builds upon a modified version of the previous Convergent Synergy motor while embracing an outstanding and intricately innovative rear-wave chamber. This carbon fiber design is completely manufactured in-house using several 3D printers. The sonic results of this tweeter development cycle have been nothing short of dramatic. The CSC offers far greater and more linear high frequency extension while providing unprecedented ambient retrieval and superior harmonic detail.

Learn More

QuadraMag

With the midrange band managed by two dissimilar sized drivers we opted to leverage the incredible advances of our Alnico (Aluminum, Nickel, Cobalt) QuadraMag® design. This 7” mid was originally developed for XVX Chronosonic and has a warmth, beauty, and texture that brings to life all the elements in your favorite recordings. The QuadraMag driver combines four separate magnets, arranged in an innovative quadrature geometry, further enhancing the delicate intricacies of the all-critical midrange reproduction quality.

Convergence of Nature, Science and Art

Alexx V Elements

Difference Between Alexx & Alexx V

Process of Handcrafting Alexx V Gantry

Gantry

Wilson Audio Acoustic Diode

Wilson Audio Acoustic Diode Specs

Convergent Synergy Carbon

QuadraMag

WilsonGloss™ Colors

Color Options

Standard

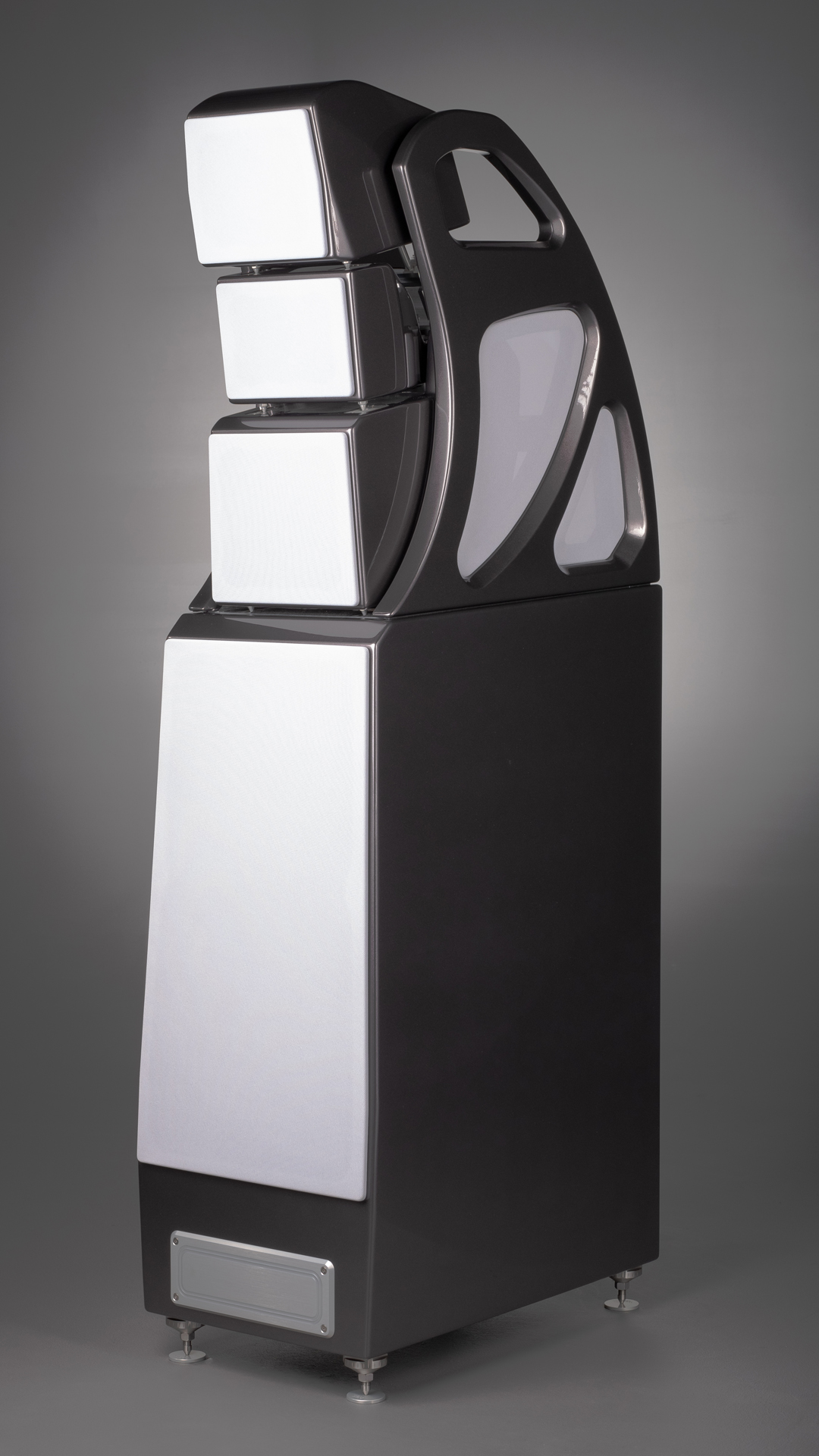

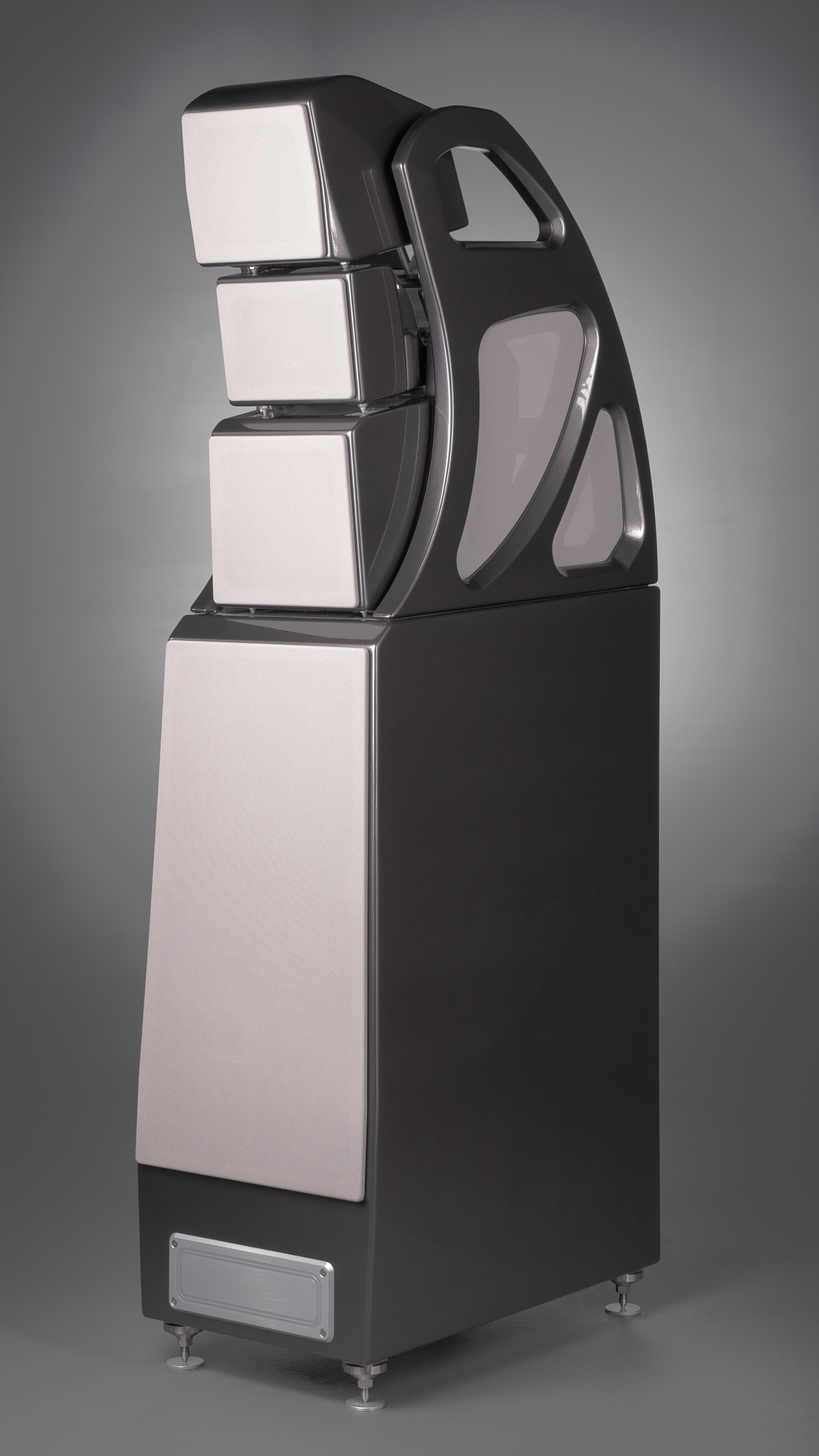

Galaxy Gray

GT Silver

Quartz

Carbon

Upgrade

Obsidian Black

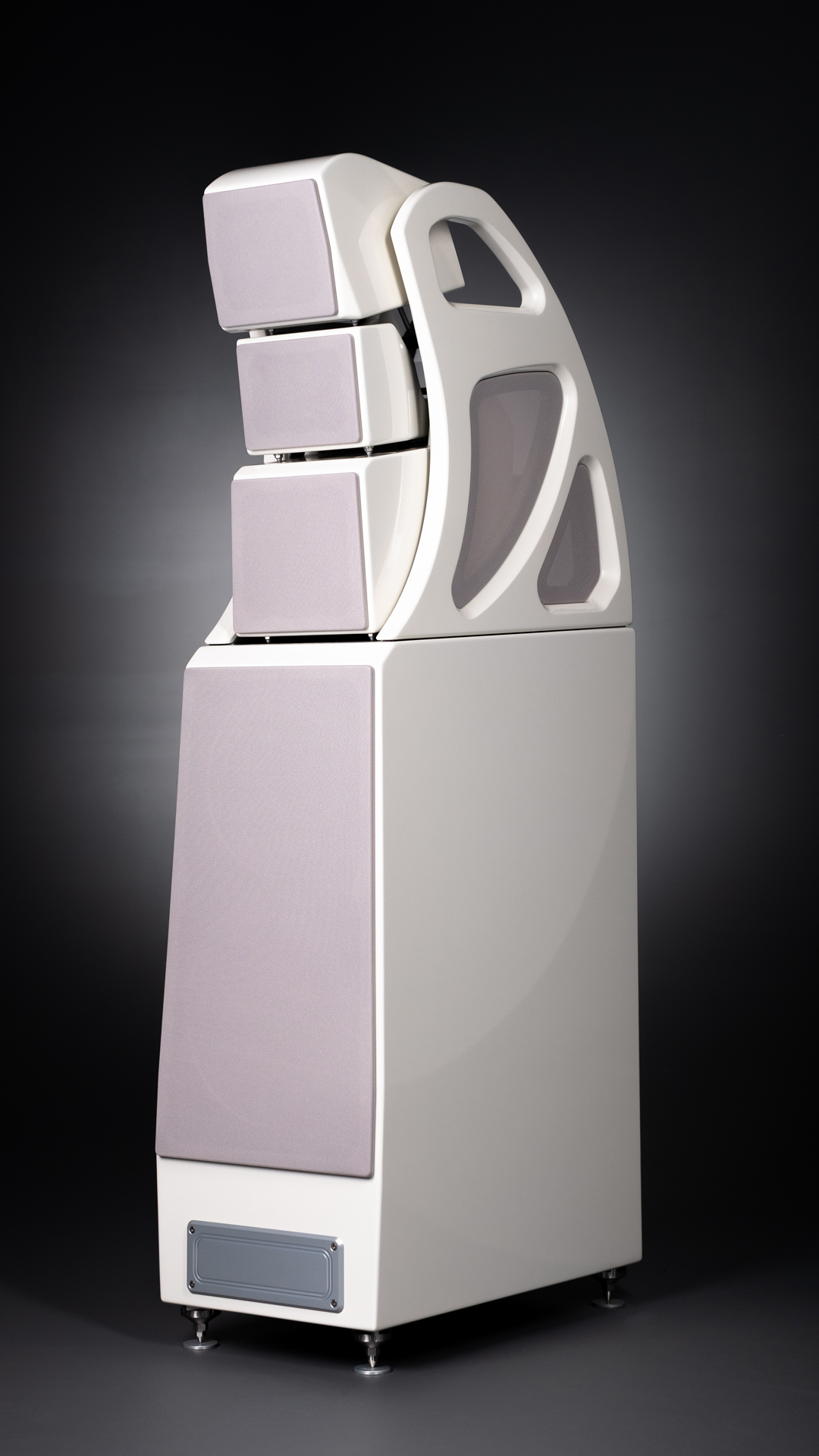

Ivory

Diamond Black

Crimson Satin

Fly Yellow

Estoril Blue

Nara Bronze

Pur Sang Rouge

Cobalt Blue Satin

Chalk

Classic Orange

Oak Green

Premium Pearl

Saffron Pearl

Bergamot Pearl

Cranberry Pearl

Olympia Pearl

Viola Pearl

Glacier Frost Pearl

Silver Ice Pearl

Blue Orchid Pearl

Ruby Red Pearl

Ember Pearl
