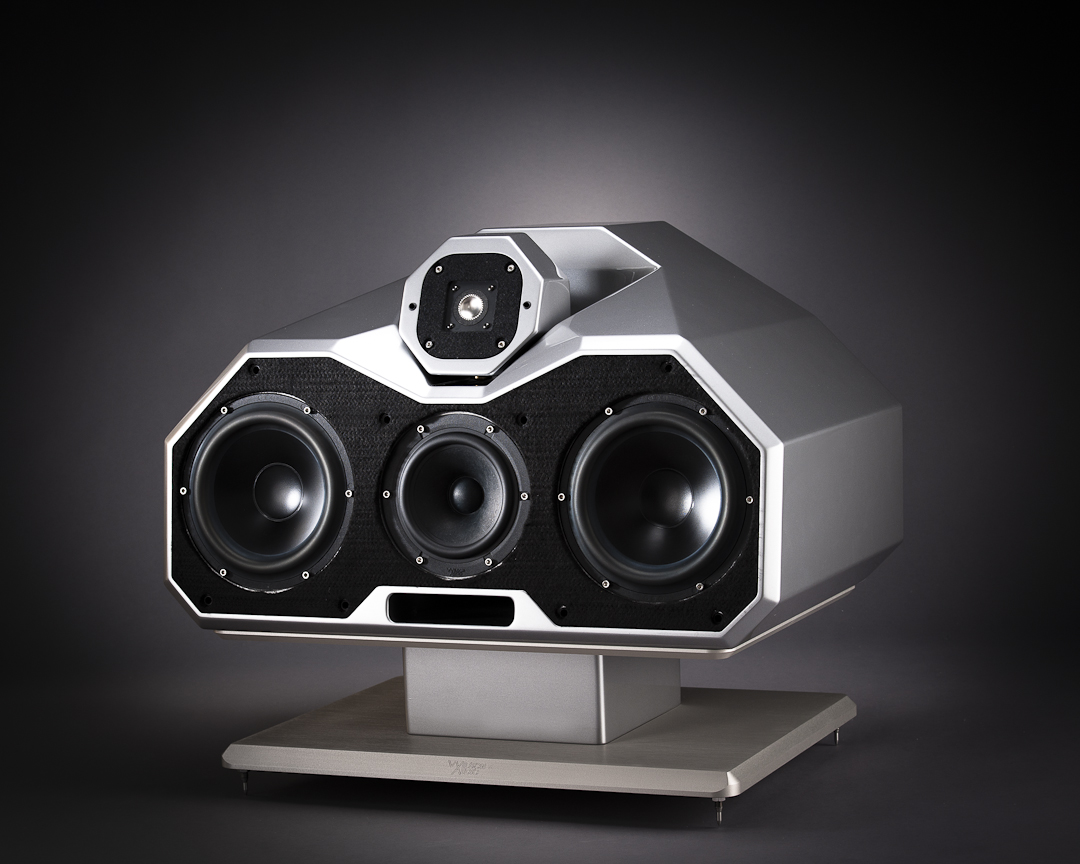

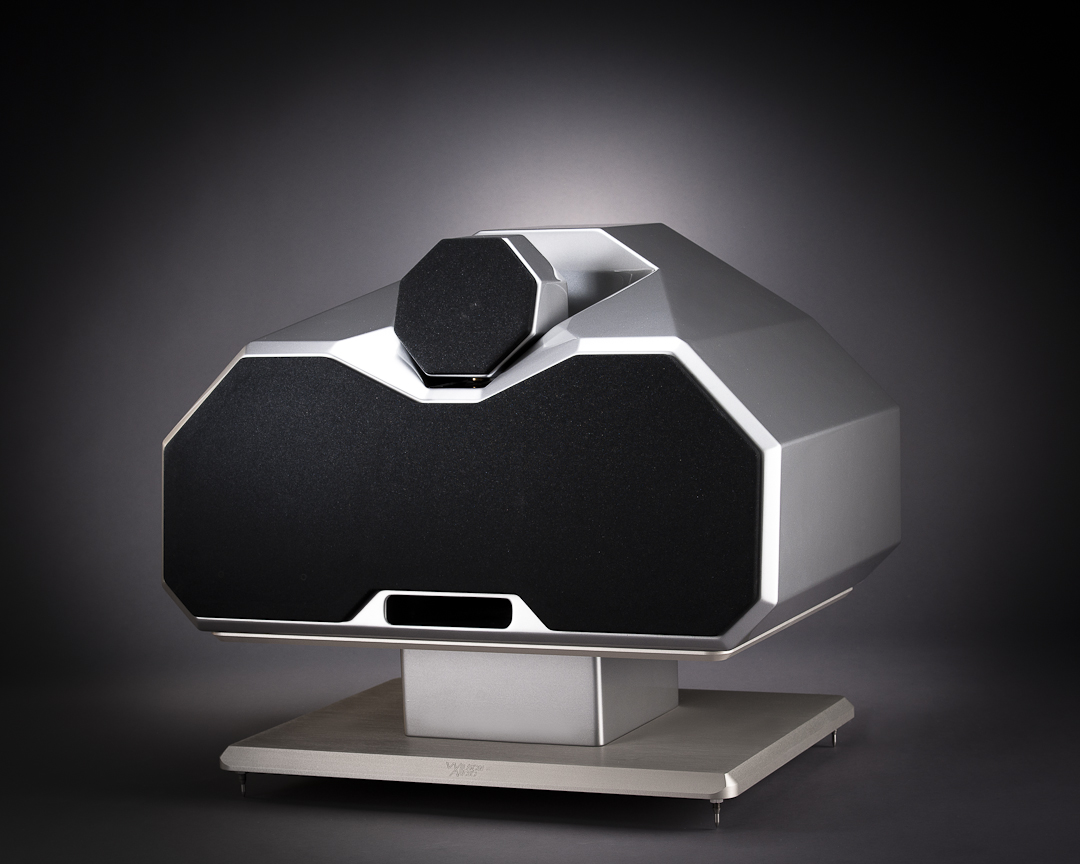

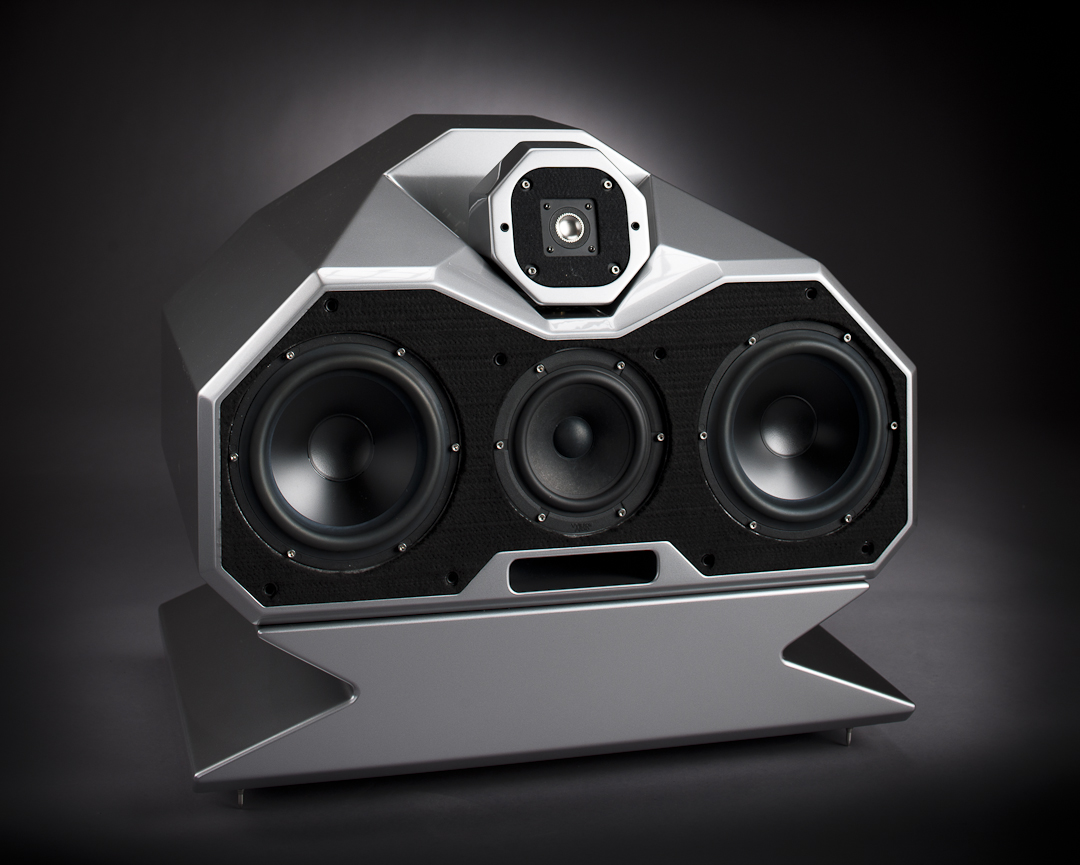

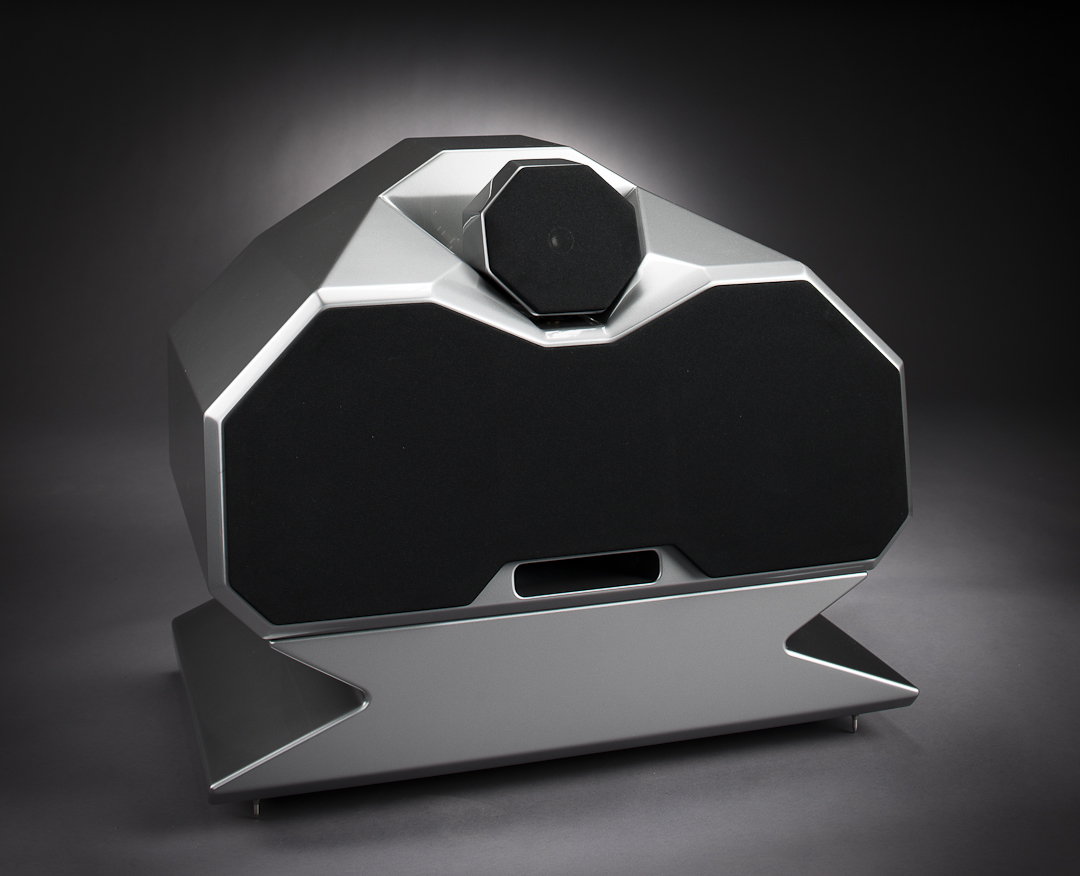

Whether it is used as a center channel in conjunction with Sasha, Alexia, or Alexx, Mezzo matches the tonal beauty, dynamic speed, tonal sophistication, resolution, and sense of “thereness” that are hallmarks of Sasha W/P.

The Mezzo crossover features technology adapted from the Sasha W/P Series 2. The goal was to reduce propagation-delay “jitter”—noise generated as a result of interactions between the different crossovers. As a result, Mezzo’s overall resolution, intertransient silence, dynamic speed and nuance are nearly identical to the Sasha W/P.

Mezzo Technical Specifications

Released: 2011
Retired: 2019

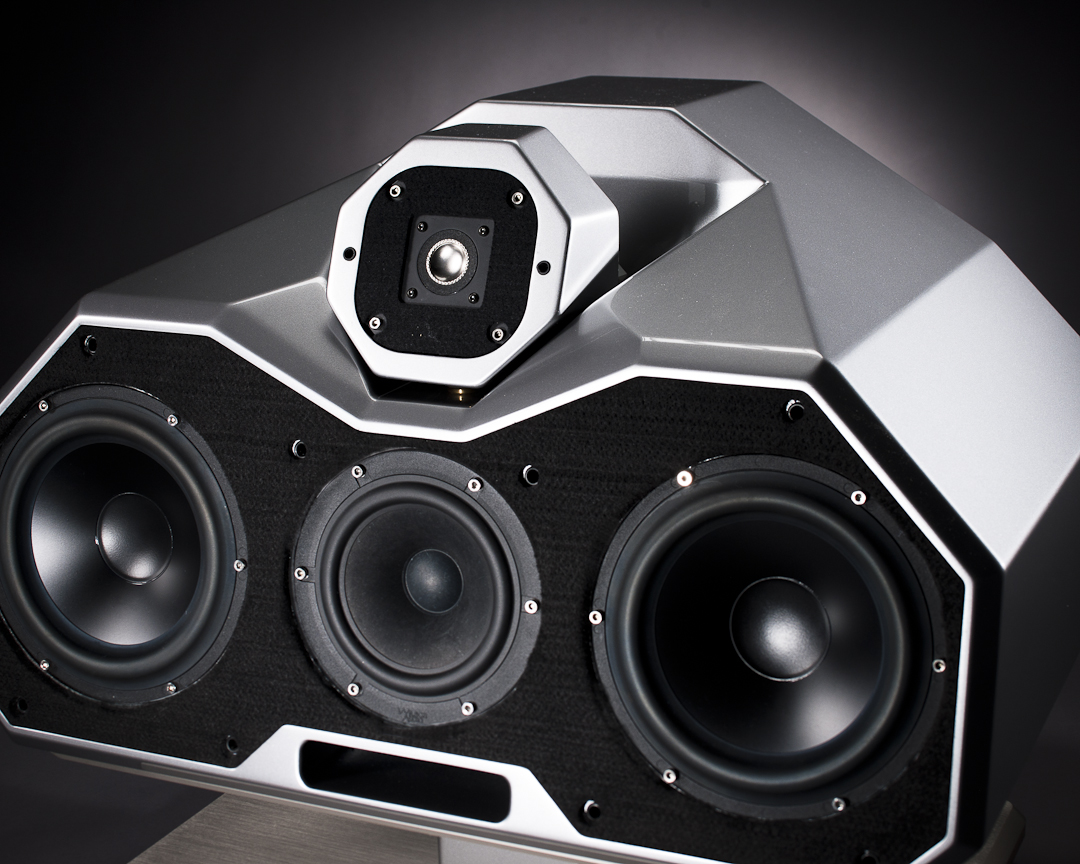

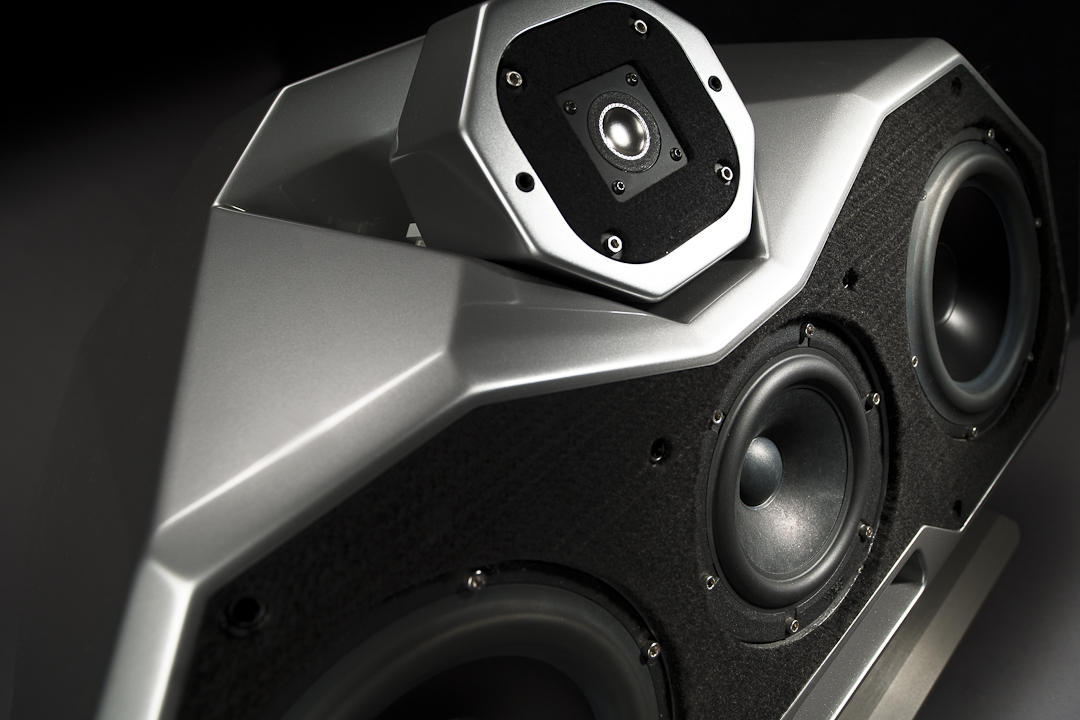

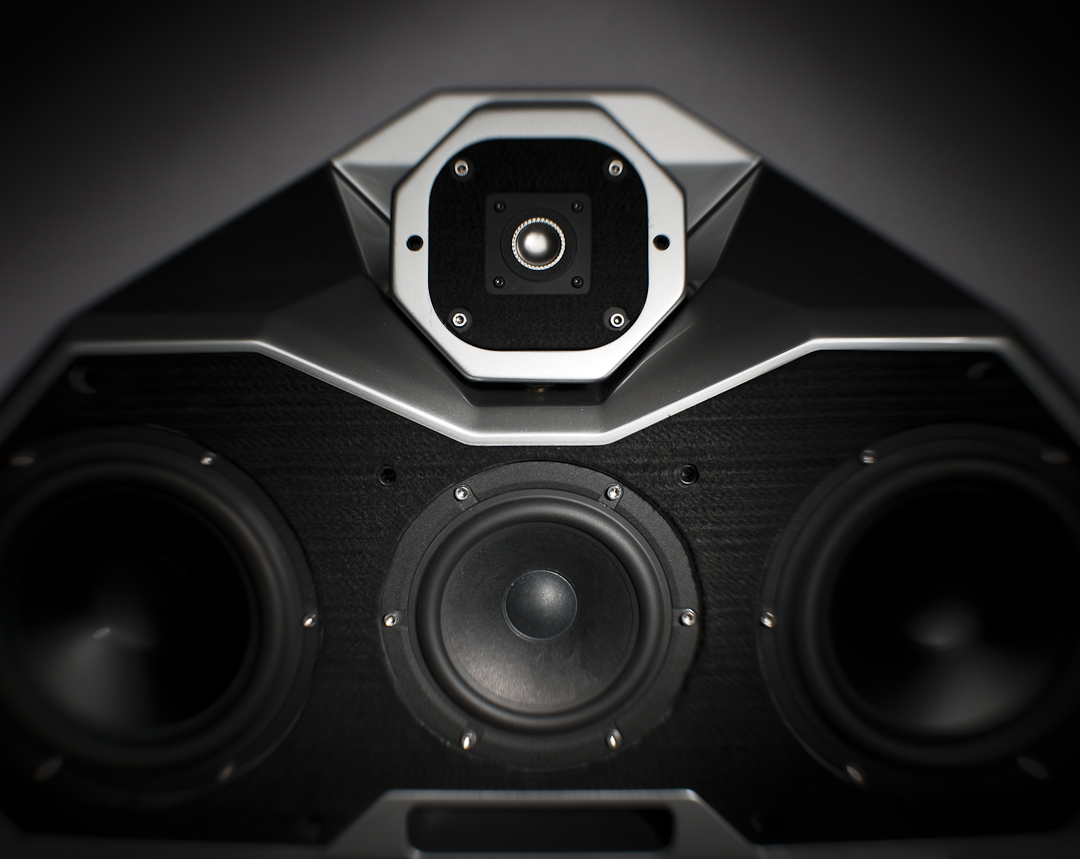

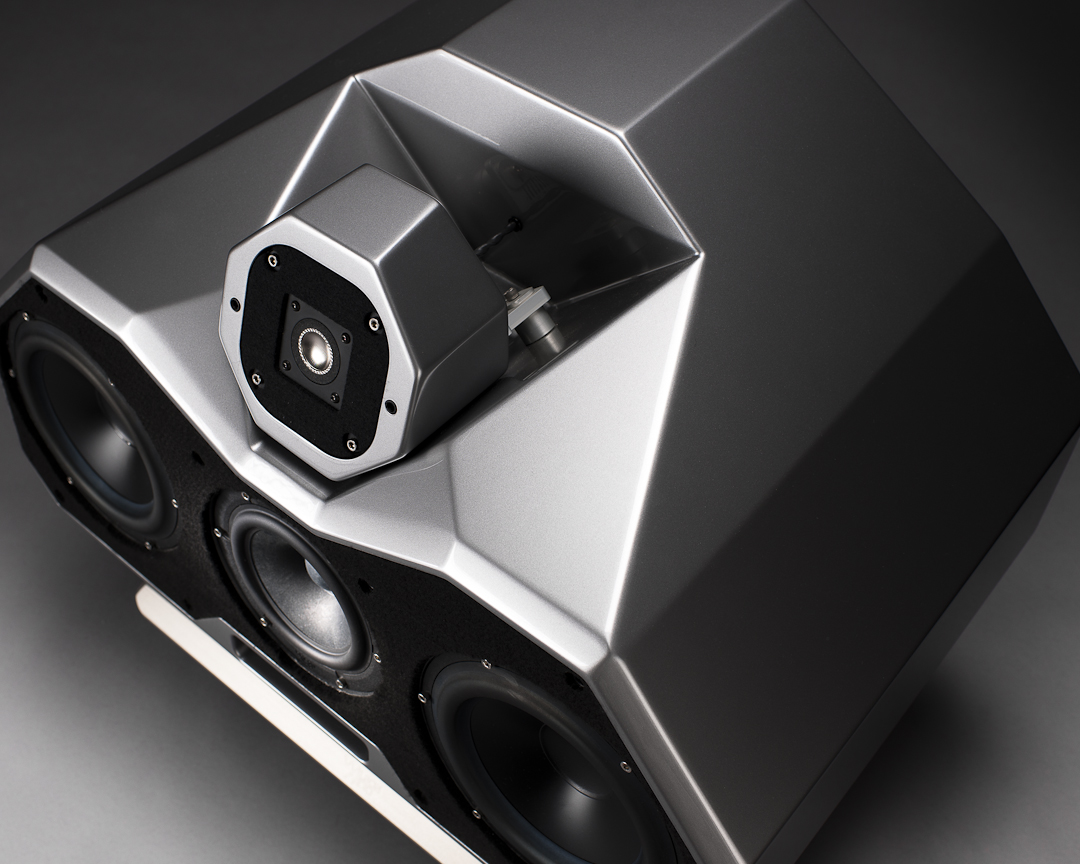

Drivers

Tweeter

1 – 1 Inch (2.54 cm), Inverted Titanium Dome

Midrange

1 – 7 Inch (17.78 cm) Cellulose/Pulp Composite

Woofer

2 – 8 Inch (20.32 cm)

Enclosures & Materials

Cabinet Material

X-Material / S-Material Midrange Baffle

Measurements

Impedance

4 ohm – minimum 2.8 ohms @ 21 Hz

Sensitivity

96 dB @ 1 watt @ 1 meter @ 1khz

Frequency Response

20Hz–22.5kHz +/- 3 dB room average response [RAR]

Overall Dimensions

Mezzo Weight Uncrated

159 lbs. (71.21 kg)

Mezzo Shipping Weight (approximate)

250 lbs. (113.40 kg)

Mezzo Height

17 3/8 inches (44.13 cm) w/o spikes

Mezzo Depth

20 7/8 inches (53.06 cm)

Mezzo Width

29 ½ inches (74.93 cm)

Stand Height (without spikes)

6 ½ inches (16.51 cm) w/o spikes

Stand Depth Hourglass

19 1/8 inches (48.63 cm)

Stand Depth Column

19 inches (48.31 cm)

Stand Width Hourglass

29 15/16 inches (76.02 cm)

Stand Width Column

25 3/16 inches (63.93 cm)
